10 Jul 2025

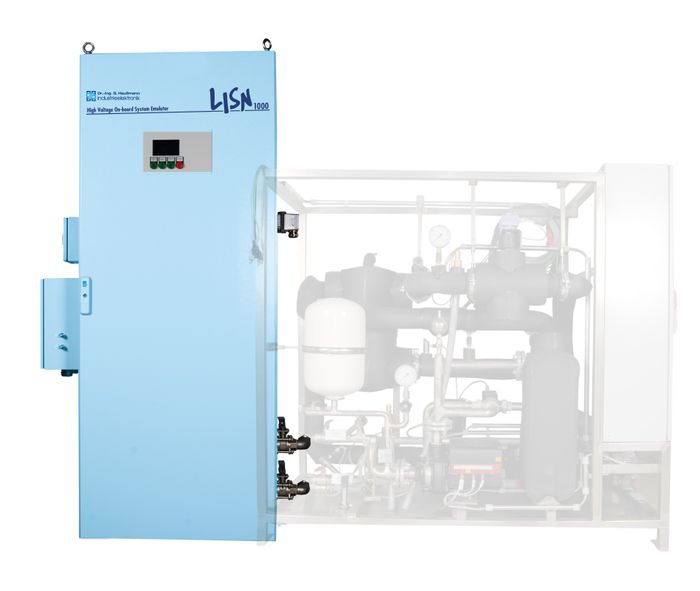

高压车载电气网络仿真设备 LISN / High Voltage On-board System Emulator LISN
)
• 将电阻值可使用跳线在 2 x 25 mΩ, 2 x 50 mΩ, 2 x 75 mΩ 和 2 x 100 mΩ 之间切换
• 直流输入上的去耦电容
• 水冷散热
• 去耦电容主动放电功能，可由测试台通过 CAN 或急停控制
• 支持内部散热器温度和水温测量和报警
• 显示屏显示当前设备状态和测量温度
• 直流输入上的去耦电容
• 水冷散热
• 去耦电容主动放电功能，可由测试台通过 CAN 或急停控制
• 支持内部散热器温度和水温测量和报警
• 显示屏显示当前设备状态和测量温度
• 电气隔离的 CAN 接口，用于读取温度、设备报警和控制放电
• The resistance values can be changed by jumpers between 2 x 25 mΩ, 2 x 50 mΩ, 2 x 75 mΩ and 2 x 100 mΩ
• Decoupling capacitor at the DC input
• Water cooling
• Active discharge of the decoupling capacitor, controlled by the test bench via CAN or emergency stop
• Measurement of internal heat sink and water temperatures with limit value monitoring
• Display for showing status messages and the measured temperatures
• Galvanically isolated CAN interface for reading out temperatures, error messages and controlling the discharge
• Decoupling capacitor at the DC input
• Water cooling
• Active discharge of the decoupling capacitor, controlled by the test bench via CAN or emergency stop
• Measurement of internal heat sink and water temperatures with limit value monitoring
• Display for showing status messages and the measured temperatures
• Galvanically isolated CAN interface for reading out temperatures, error messages and controlling the discharge
)
