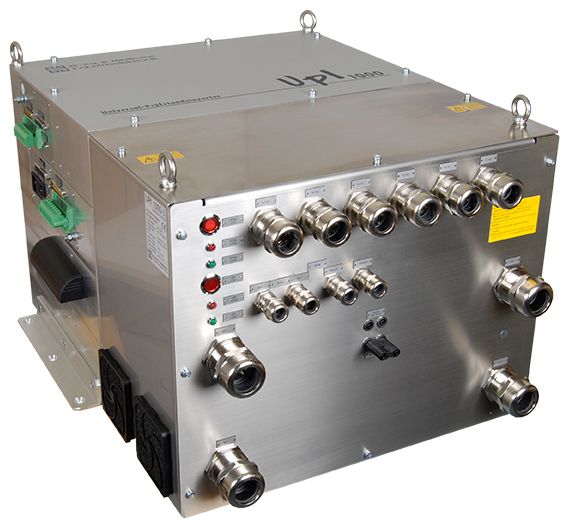

测试台用逆变器 UPI800, UPI1000, UPI1250 / Universal test bench inverter UPI800, UPI1000, UPI1250
)
• 使用 SiC 模块及配套驱动器的电力电子部件
• 通过50 针 Sub-D 接口连接 dSPACE MicroLabBox 进行控制和数据采集
• 交流/直流 电压测量 (± 0,6%, 0 – 800 kHz)
• 直流/交流 电流测量 (± 1%, 0 – 72 kHz)
• 散热器温度检测
• 编码器和旋转变压器可通过面板卡连接
• 过流和过压保护
• 可通过电池模拟器或车辆电池供电
• 通过50 针 Sub-D 接口连接 dSPACE MicroLabBox 进行控制和数据采集
• 交流/直流 电压测量 (± 0,6%, 0 – 800 kHz)
• 直流/交流 电流测量 (± 1%, 0 – 72 kHz)
• 散热器温度检测
• 编码器和旋转变压器可通过面板卡连接
• 过流和过压保护
• 可通过电池模拟器或车辆电池供电
• 内部防护功能通过 FPGA 芯片实现（过热保护、散热器温度监控）
• Power electronics with SiC modules with suitable driver control.
• Control and data acquisition via dSPACE MicroLabBox® with 50-pin DSub connectors
• AC and DC voltage acquisition (± 0,6%, 0 – 800 kHz)
• DC and AC current acquisition (± 1%, 0 – 72 kHz)
• Heat sink temperature sensing
• Connection possibilities for resolver and incremental encoders via interface cards
• Protection against overcurrent and overvoltage
• DC power supply via battery simulator or vehicle battery possible
• Internal FPGA logic for self-protection (max. frequency, hot branch, heat sink temperature)
• Control and data acquisition via dSPACE MicroLabBox® with 50-pin DSub connectors
• AC and DC voltage acquisition (± 0,6%, 0 – 800 kHz)
• DC and AC current acquisition (± 1%, 0 – 72 kHz)
• Heat sink temperature sensing
• Connection possibilities for resolver and incremental encoders via interface cards
• Protection against overcurrent and overvoltage
• DC power supply via battery simulator or vehicle battery possible
• Internal FPGA logic for self-protection (max. frequency, hot branch, heat sink temperature)
)
