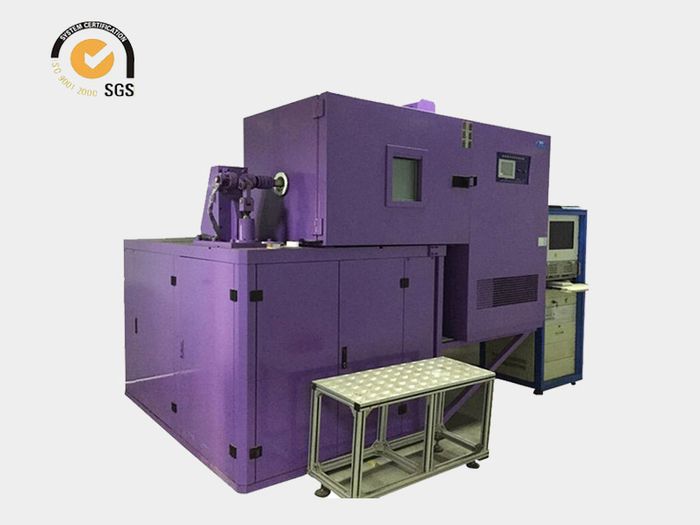

4-Axis Ball Joint Durability Testing System
)
)
)
)
System Performance
» Max. Radial Load: ± 20KN 0 20Hz ± 25mm
» Max. Axial Load: ± 20KN 0～20Hz ± 25mm
» Load Frequency Range: 0-20 Hz
» Max. Rotating Angle: 0～± 45 deg @ 0～15Hz
» Max. Oscillation Angle: 0～± 30 deg @0～15Hz
»Environmental Chamber:-50～150℃
System Content
» 1 specimen test station

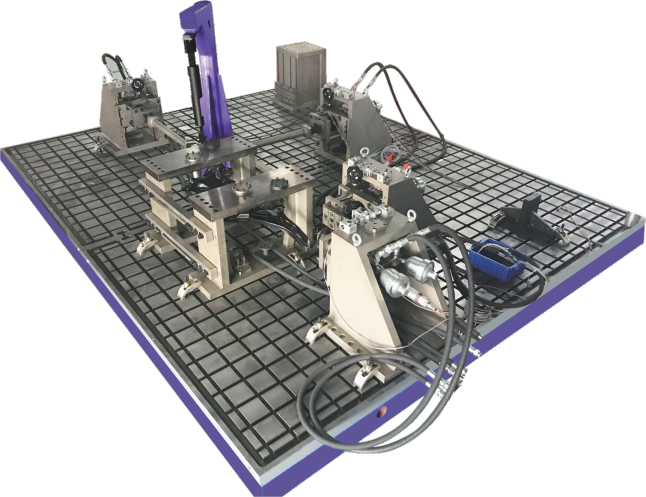

» T-slot plate with loading frames and fixtures
» FlexTest System Controller and Software
» Hydraulic Power Supply
» RIG installation and support services
)
