• 2-channel digital controller • Digital loop cycle rate: 4 kHz • 16-bit resolution • Supports independent feedback source for each control loop • Manual PID tuning

• Multiple outputs available to control mean value and amplitude, simplifying control for low-load & large-displacement tests • Dual-loop / dual-setup mode (Optional) • Dual-loop technology: inner and outer control loops with separate feedback signals (e.g., force for inner loop, displacement for outer loop) • Inner loop limit protection (to avoid invalid setpoints from the outer loop)

• Frequency range: 0.1 Hz ~ 200 Hz • Waveforms: sine wave, square wave, triangular wave, dual-sine wave, etc. • External signal input

• Arbitrary waveform generation • Cyclic test sequencing • Actions: enable/disable, pressure switch trigger, digital input wait, static setpoint, range configuration, amplitude control enable/disable, etc.

• Two configurable output modes: 50 mA current output or ±10 V voltage output • Dither signal: 0–25% amplitude, frequency range 15–1000 Hz

• Relay switch output: 1 A, 24 VDC • Status / pump interlock logic • Standard industrial M12 connectors • High/low pressure control via 1 A, 24 VDC relays

• Configurable via jumpers and software (gain, offset, balance, shunt calibration) • Compatible with AC/DC LVDTs and resistive bridge sensors • Inputs for 2 DC resistive bridge sensors • Built-in calibration function • Dual encoder input channels

• Min & max threshold limits • Instantaneous deviation, amplitude and mean value error limits • Configurable protective actions when limits are triggered

• 90–240 VAC, 47–63 Hz

• Height: 87 mm, Length: 305 mm, Depth: 268 mm

• Height: 120 mm, Length: 305 mm, Depth: 268 mm

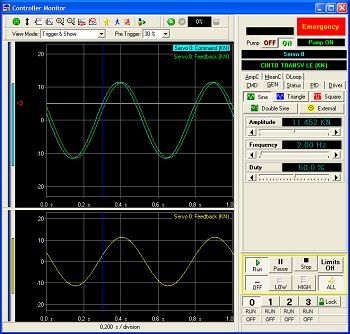

• ATMP Software: Dynamic test control software • AqDAnalysis Software: Post-processing data analysis software
