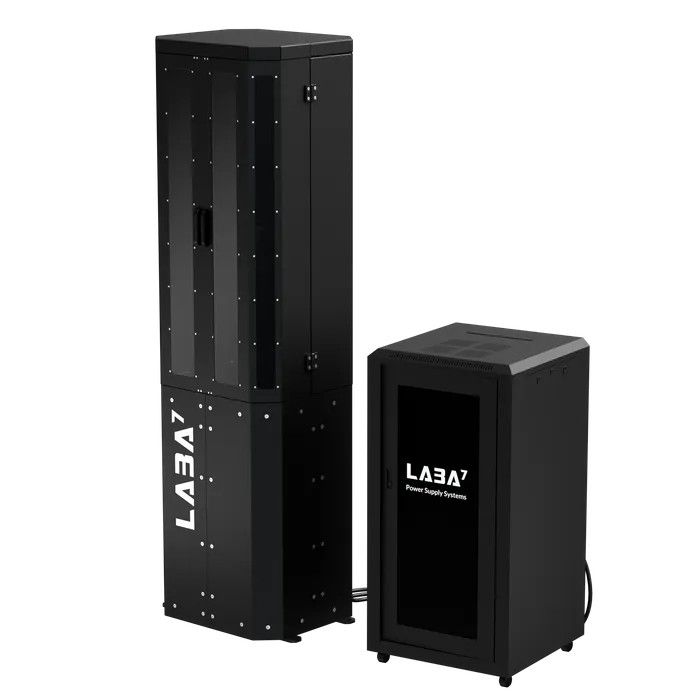

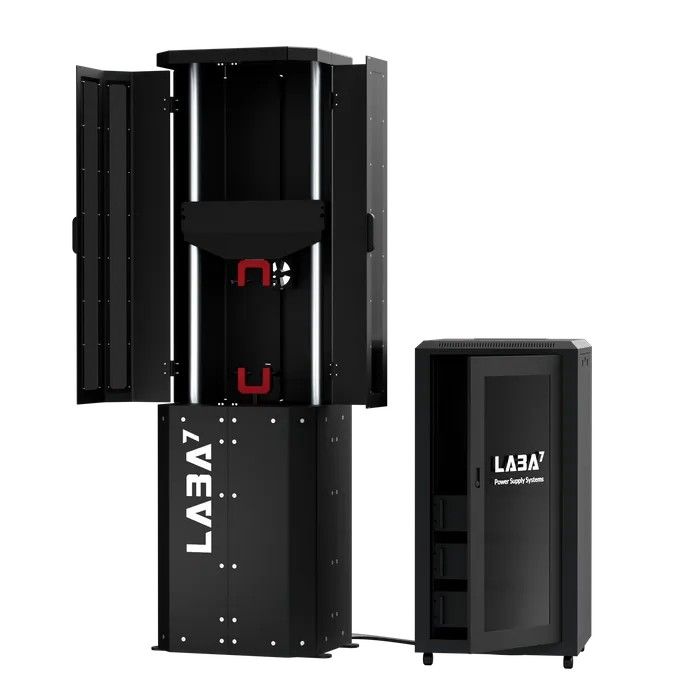

Electromagnetic Damper Test System – EMA
- Beyond standard displacement protocols, the EMA now performs advanced torque-based testing. This allows for precise friction characterization, seal drag measurement, and constant-force simulation, providing deeper insights into internal damper mechanics.
- Fully compatible with Continuous Damping Control (CDC) and semi-active suspension systems. The EMA allows you to drive electronic valves and simulate ECU inputs in real-time, bridging the gap between hardware testing and software calibration.
- Direct-drive actuation ensures zero mechanical play, allowing for complex waveforms like Pink noise, Chirp, and Square waves that hydraulic systems cannot replicate.
- Import telemetry data directly to simulate specific racetracks (e.g., Nürburgring, Monaco) in the workshop, solving handling issues before the car returns to the track.
- Unique to LABA7, the system uses supercapacitor packs to store energy, allowing high-power testing (up to 120kW peak) while running on a standard domestic grid.
| Specification | Value |
| Max Velocity | 7 m/s |
| Peak Force | Up to 40 kN |
| Position Resolution | 50 nanometers |
| Sampling Rate | 20 kHz (Synchronized) |
| New Capabilities | Torque-Based Testing, CCD/CDC Support |
| Stroke | 250 mm |

)
)
)
