Next Generation of Torque Measurement – T110/T100
)
Engineered for cutting-edge performance,
the T110/T100 series features an impressive signal bandwidth of up to 15 kHz,
unlocking new levels of measurement insight. This enables deeper exploration in
R&D and significantly enhances production yield.

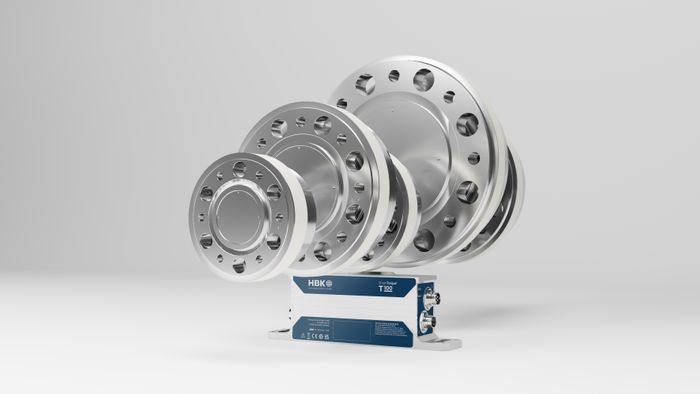

At the heart of this innovation is the T100
Stator, built on a revolutionary “one-size-fits-all” concept. It is
compatible with a wide range of rotor sizes, including the newly introduced
T110. This design simplifies the pairing process, allowing freely calibrated
rotor-stator combinations. Users can now mix and match components as needed
- boosting flexibility, reducing complexity, and cutting costs.
l HBK Accuracy Class: 0.03
l Nominal torque: 50 N·m to 10 kN·m
l Nominal rotational speed: up to 25,000 min-1
l Speed measurement: ≤ 8192 Impulses/rotation (freely adjustable
)
