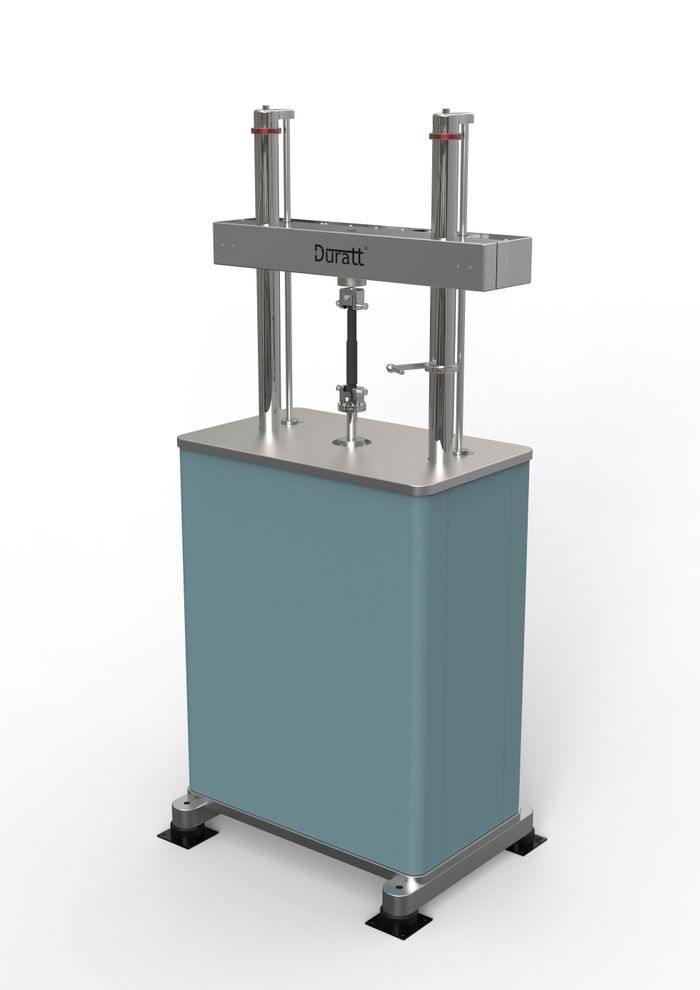

The Duratt Series Electromagnetic Dynamic Testing Platform integrates custom high-performance linear motors and advanced control systems, enhanced by top-grade sensor technology. It offers a unified solution of high performance, high frequency, high precision and high durability.

With integrated fatigue, load spectrum iteration and force-displacement (indicator diagram) analysis software, Duratt systems enable testing and research of the static and dynamic mechanical properties of automotive components. The system supports road-load spectrum fatigue damage evaluation, as well as damper performance characterization, including indicator diagram analysis, damping properties, dynamic stiffness and transmissibility.

Features include dynamic force up to 55kN, with sub-Newton resolution; dynamic displacement up to 200mm, with micron-level precision; frequency up to 200Hz; and maximum velocity of 4m/s.
